Graphite Electrode

Name: Graphite Square

Place of Origin: China

Supply Ability:

MOQ: 20MT

Port of Loading: China

Payment Terms: T/T, L/C, D/P

Introduction Products：

1.Features:

Graphite square is a square product inside the graphite electrode. It is a square material made of graphite by crushing, screening,batching, molding, cooling and roasting, impregnating and graphitization of petroleumcoke and medium-temperature coal pitch.

The main specifications are 425*425*1950, 525*525*1950, 525*625*1950, 625*625*1950, 625*725*1950 and other specifications.

2. Application:

High temperature resistance, corrosion resistance, good conductivity, light weight and other advantages, mainly used for large dc resistance furnace, blast furnace brick, conductive electrode, lining corrosion and other purposes.

3.Specifications:

Name: Carbon Electrode

Place of Origin: China

Supply Ability:

MOQ: 20MT

Port of Loading: China

Payment Terms: T/T, L/C, D/P

Introduction Products：

1.Feature:

The main raw material for manufacturing carbon electrode is preheating anthracite or anthracite, in which part of the recycled material (broken electrode, etc.) or casting coke is added, bituminous coal pitch or pitch containing anthracene oil is used as binder, and a small amount of natural graphite is added for extrusion molding and roasting.

The specific resistance of carbon electrode is 2~3 times greater than that of graphitized electrode, and its compressive strength at room temperature is greater than that of graphitized electrode, but its thermal conductivity and oxidation resistance are not as good as that of graphitized electrode.

2.Application:

Carbon electrode is suitable for smelting steel and ferroalloy in medium and small electric furnace and ferroalloy furnace.

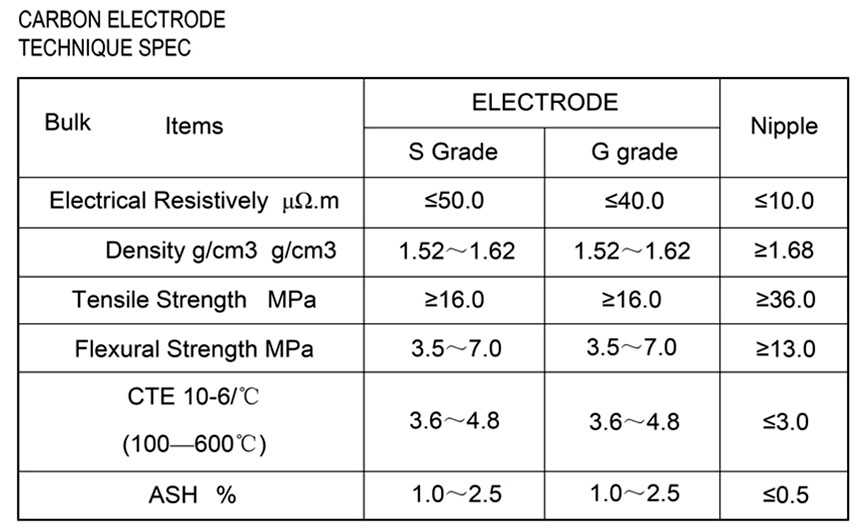

3.Specification:

Name: Graphite Electrode RP HP UHP

Place of Origin: China

Supply Ability:

MOQ: 20MT

Port of Loading: China

Payment Terms: T/T, L/C, D/P

Introduction Products：

1.Feature:

Graphite electrode mainly petroleum coke, needle coke as raw material, coal asphalt binder, calcination, ingredients, kneading, molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, according to its quality index, can be divided into ordinary power graphite electrode, high power graphite electrode and ultra high power graphite electrode.

The main raw material of graphite electrode production is petroleum coke. A small amount of asphalt coke can be added to common power graphite electrode, and the sulfur content of petroleum coke and asphalt coke cannot exceed 0.5%.Needle coke is also needed to produce high power or ultra high power graphite electrodes.

2.Application:

The graphite electrode for steel – making accounts for 70% ~ 80% of the total amount of graphite electrode.In eaf steelmaking, the graphite electrode is used to introduce current into the furnace, and the high temperature heat source generated by arcing between the electrode and charge is used for smelting.

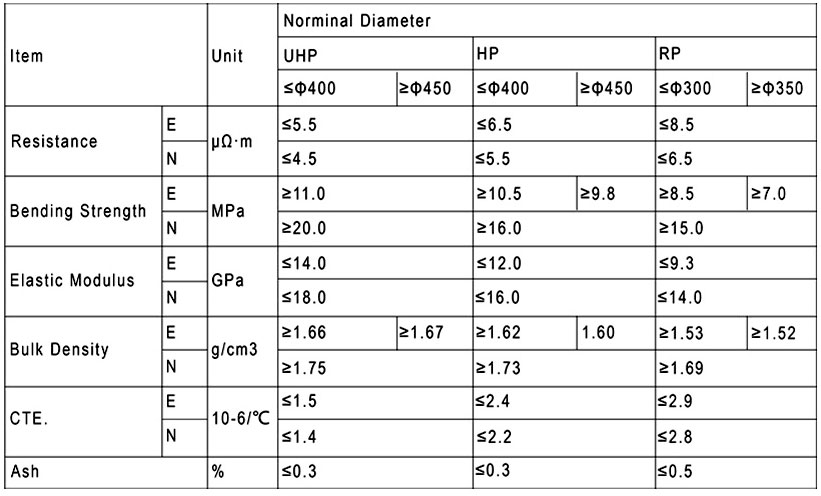

3. Specification:
